Product Description

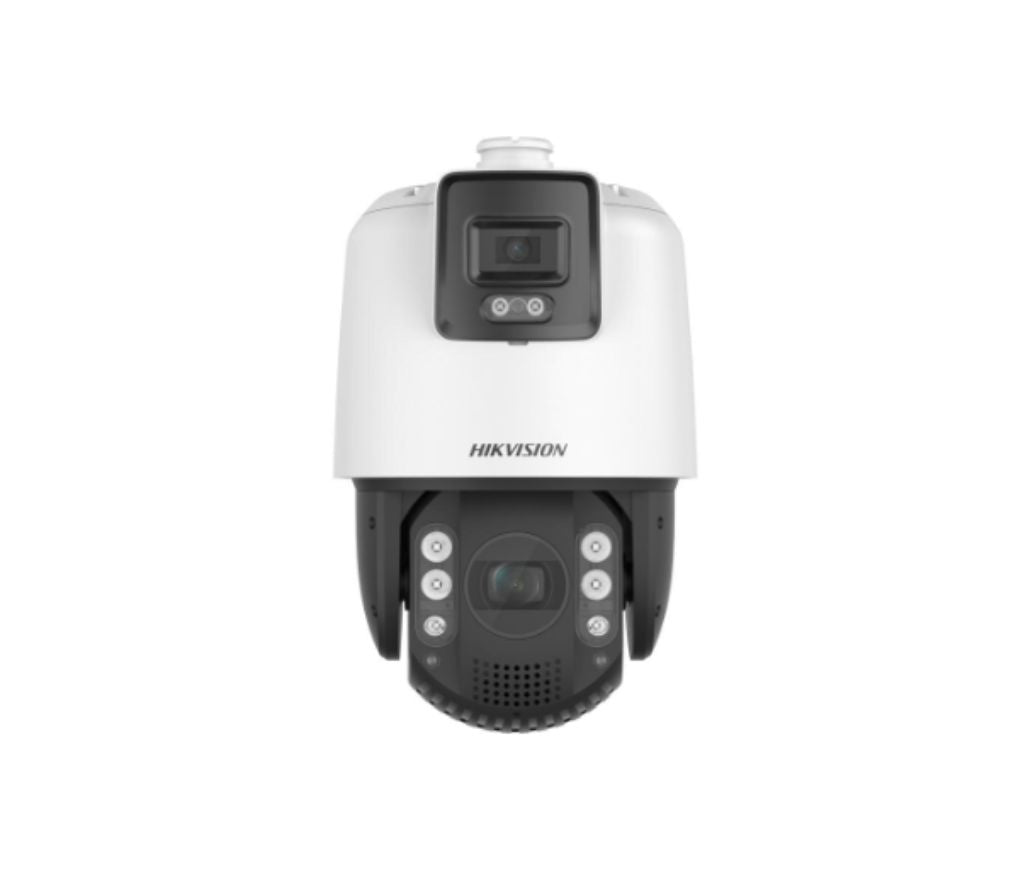

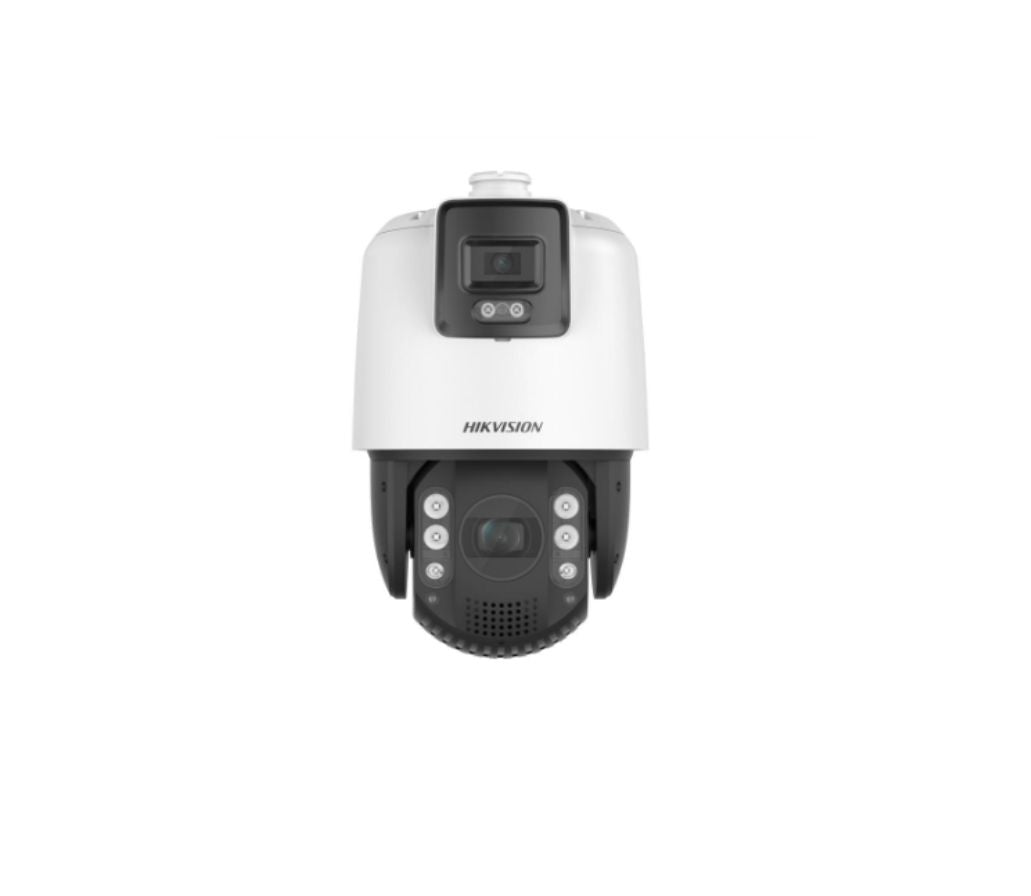

TandemVu 7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome

• 1/2.8" Progressive Scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Secures an expansive area with 32? optical zoom and 16? digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
• Expansive night view with up to 200 m IR distance
• Supports 24 VAC & Hi-PoE
• Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable

Specification

• Camera

• Lens

• Illuminator

• PTZ

• Video

• Audio

• Network

• Image

• Interface

• Event

• Deep Learning Function

• General

• Approval

• Camera
• Image Sensor[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Max. Resolution[panoramic channel]: 2560 ? 1440; [PTZ channel]: 2560 ? 1440
• Min. Illumination

  [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR;

  [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s
• Day & NightICR
• Zoom16x digital
• Slow Shutteryes
• HLCyes
• 3D DNRyes
• Optical Zoom32x

• Lens
• Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 ? optical
• FOV

  [panoramic channel]: Horizontal field of view: 79?, Vertical field of view: 42.4?;

  [PTZ channel]: Horizontal field of view: 60.2? to 2.3? (wide-tele)

• Focussemi-auto||manual||auto
• Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.5
• Zoom Speed[PTZ channel]: approx. 5.6 s

• Illuminator
• Supplement Light Range[PTZ channel]: up to 200 m; [panoramic channel]: up to 30 m
• Visual Alarm30 m

• PTZ
• Movement Range (Pan)360?
• Movement Range (Tilt)-15? to 90? (auto flip)
• Pan Speedpan speed: configurable from 0.1? to 160?/s; preset speed: 240?/s
• Tilt Speedtilt speed: configurable from 0.1? to 120?/s, preset speed 200?/s
• Proportional Panyes
• Presets300
• Preset Freezingyes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output||??
• Power-Off Memoryyes

• Video
• Main Stream

  [panoramic channel]:

  50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

  60 Hz: 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

  [PTZ channel]:

  50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

  60 Hz: 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

• Sub-Stream

  [panoramic channel]:

  50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288)

  60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)

  [PTZ channel]:

  50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288)

  60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)

• Third Stream

  [panoramic channel]:

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

  [PTZ channel]:

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

• Video CompressionH.265||H.264||MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typebaseline profile||main profile||high profile
• H.265 Typemain profile
• Scalable Video Coding (SVC)yes
• Region Of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||AAC||PCM
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

• Network
• ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
• Simultaneous Live View20
• APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
• User/Host32
• SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
• ClientiVMS-4200||Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

• Image
• Image Parameters Switch[panoramic channel]: yes; [PTZ channel]: yes
• Image Settingssaturation||brightness||contrast||sharpness
• Day/Night Switchday, night, auto, scheduled-switch
• Wide Dynamic Range (WDR)120 dB WDR
• SNR?52dB
• Defogyes
• Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Maskpolygon region ||mosaic mask ||mask color configurable||[panoramic channel] 8 masks, [PTZ channel] 24 masks
• Regional Focusyes
• Regional Exposureyes

• Interface
• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm?10%,1 audio output, line level, impedance: 600 ?
• Alarm2 input(s), 1 output(s)
• Resetyes

• Event
• Basic Eventmotion detection||alarm input||alarm output||video tampering alarm||exception
• Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
• Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking||audible warning||white light flashing
• Smart Trackingmanual tracking||panorama tracking||event tracking||auto-tracking||tracking takeover

• Deep Learning Function
• Face CaptureSupport detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

• General
• Power24 VAC, Hi-PoE
• Dimension?220 mm ? 382.1 mm (? 8.7" ? 15.0")
• WeightApprox. 6 kg (13.23 lb.)
• MaterialADC12
• Operating Condition-30? to 65? (-22?F to 149?F) ||humidity lower than 90%RH
• General Functionmirror, password protection, watermark, IP address filter
• DemistDemist by heating the glass
• Power Consumption And CurrentMax. 42 W, including max. 2.6 W f
