LTS+HIKVISION 16Ch Security Cameras System Bullet 8 Megapixel H.265+ 4K/HDD IP67

Description

LTS+HIKVISION 16Ch Security Cameras System Bullet 8 Megapixel H.265+ 4K/HDD IP67


This listing includes:

  •  CAMERA QUANTITY (DS-2CE16H0T-ITF): 4;6;8;10;12;14;16
  • HARD DRIVE OPTION FOR RECORDER LTD8516K-ST: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


DS-2CE16H0T-ITF  view data sheet

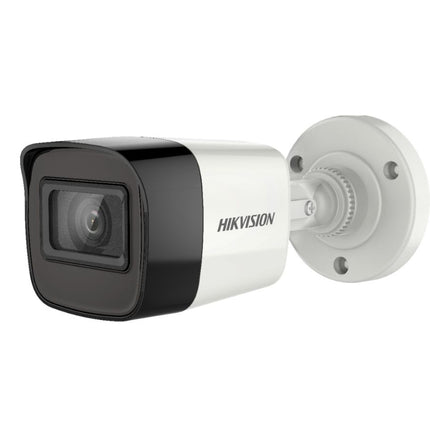

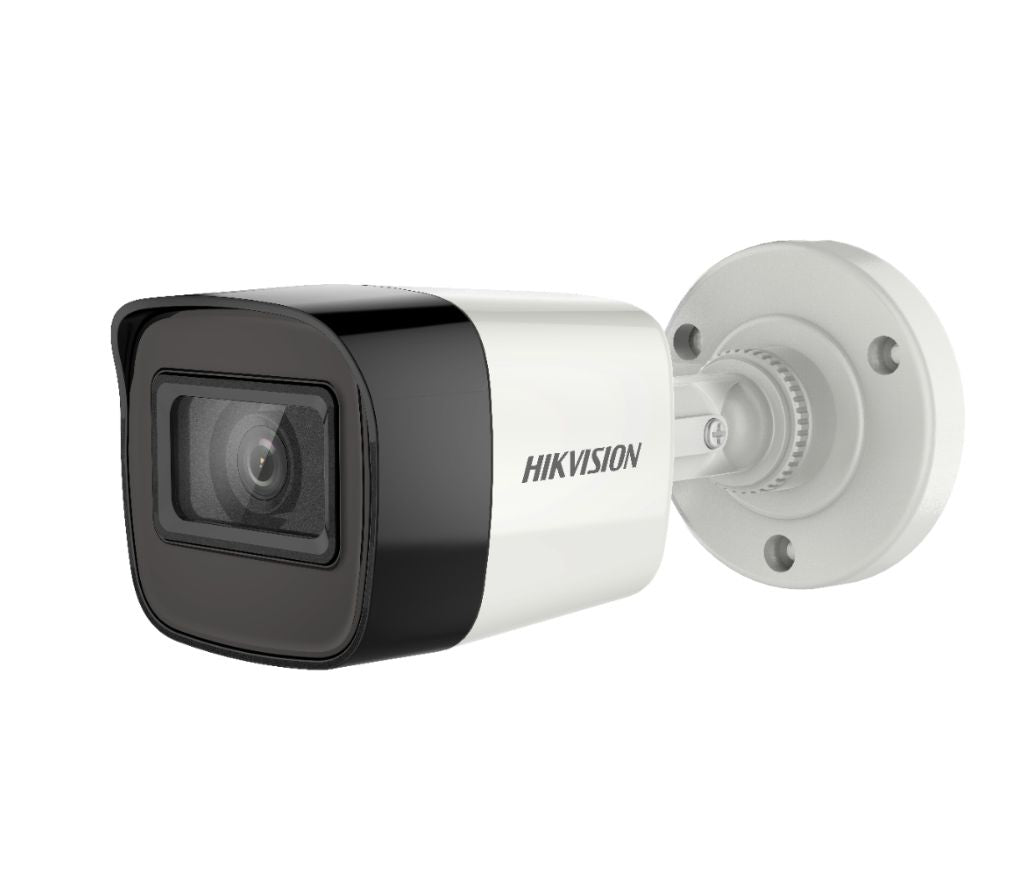

5 MP Fixed Mini Bullet Camera

  • 5 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)


LTD8516K-ST  view data sheet

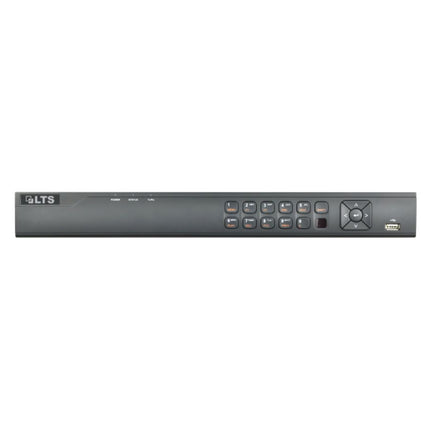

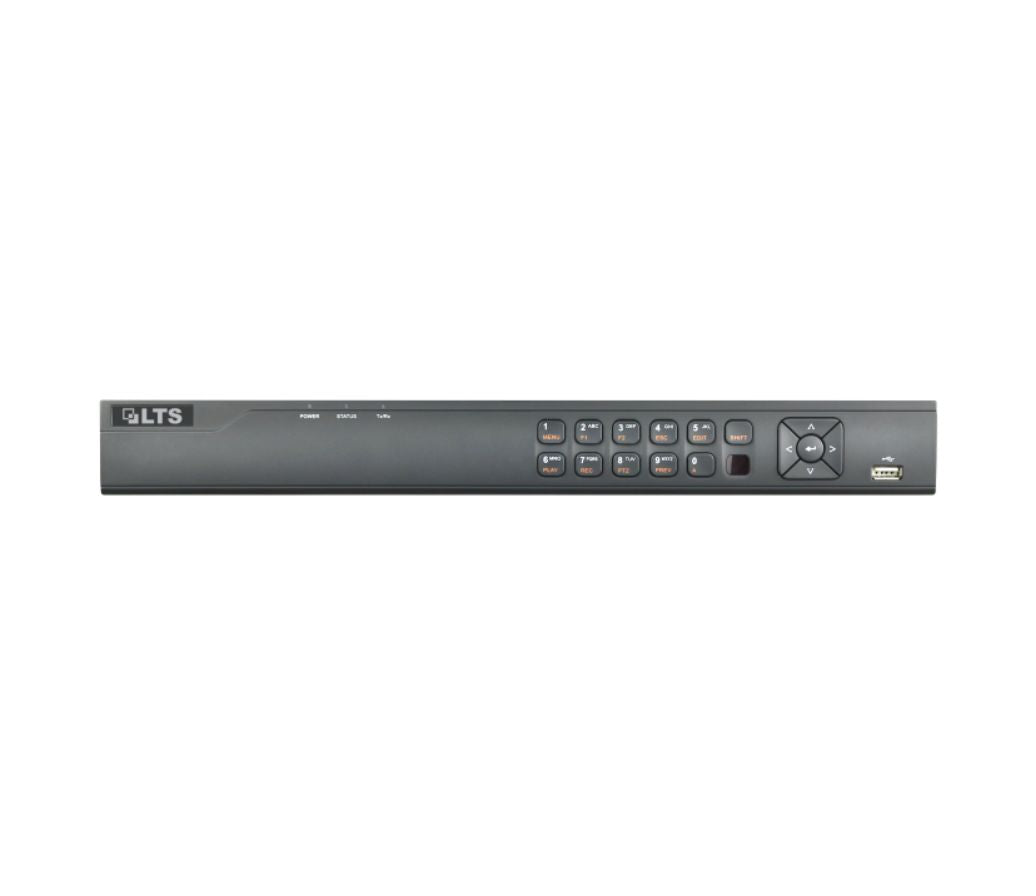

Platinum Professional Level 16 Channel HD-TVI 4.0 DVR

H.265/H.265+ 16CH DVR, 4/1 RCA I/O, 5 in 1, Up to 4K/8MP HD-TVI input, Up to 2-ch 6MP IP cameras input, Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras, Up to 4k HDMI Video Output, CVBS Output, 2 SATA up to 16TB each HDD, 2 USB 2.0

  • H.265/H.265+ 16 Channel Video Recorder
  • 4/1 RCA I/O
  • 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 16 channels support up to 4K/8MP HD-TVI input
  • Up to 2-ch 6MP IP cameras input
  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 4k HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 2 USB 2.0

LTS+HIKVISION 16Ch Security Cameras System Bullet 8 Megapixel H.265+ 4K/HDD IP67

Product form

SKU: 103326418966-QT4

$731.11 $676.95

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      LTS+HIKVISION 16Ch Security Cameras System Bullet 8 Megapixel H.265+ 4K/HDD IP67


      This listing includes:

      •  CAMERA QUANTITY (DS-2CE16H0T-ITF): 4;6;8;10;12;14;16
      • HARD DRIVE OPTION FOR RECORDER LTD8516K-ST: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


      DS-2CE16H0T-ITF  view data sheet

      5 MP Fixed Mini Bullet Camera

      • 5 MP bullet camera
      • EXIR 2.0: advanced infrared technology with 20 m IR distance
      • Water and dust resistant (IP67)
      • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)


      LTD8516K-ST  view data sheet

      Platinum Professional Level 16 Channel HD-TVI 4.0 DVR

      H.265/H.265+ 16CH DVR, 4/1 RCA I/O, 5 in 1, Up to 4K/8MP HD-TVI input, Up to 2-ch 6MP IP cameras input, Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras, Up to 4k HDMI Video Output, CVBS Output, 2 SATA up to 16TB each HDD, 2 USB 2.0

      • H.265/H.265+ 16 Channel Video Recorder
      • 4/1 RCA I/O
      • 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
      • 16 channels support up to 4K/8MP HD-TVI input
      • Up to 2-ch 6MP IP cameras input
      • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
      • Up to 4k HDMI Video Output
      • CVBS Output
      • 2 SATA up to 16TB HDD
      • 2 USB 2.0
      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet

      Data sheet PDF

      Product Description

      5 MP Fixed Mini Bullet Camera

      • 5 MP bullet camera
      • EXIR 2.0: advanced infrared technology with 20 m IR distance
      • Water and dust resistant (IP67)
      • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

      Specification

        • Camera
        • Image Sensor5 MP CMOS image sensor
        • Max. Resolution2560 (H) ? 1944 (V)
        • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
        • Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
        • Day & NightIR cut filter
        • Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 180?; Rotate: 0? to 360?
        • Lens
        • Lens Type2.8 mm, , 6 mm fixed focal lens
        • Focal Length & FOV85.5? (2.8 mm), 80.1? (), 57.1? (6 mm)
        • Lens MountM12
        • Image
        • Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
        • Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
        • Day/Night ModeAuto/Color/BW (Black and White)
        • Wide Dynamic Range (WDR)DWDR
        • Image EnhancementBLC
        • White BalanceATW/MWB
        • AGCSupport
        • Interface
        • Video OutputSwitchable TVI/AHD/CVI/CVBS
        • General
        • MaterialMetal
        • Dimension58 mm ? 61 mm ? 163 mm (2.28" ? 2.40" ? 6.42")
        • WeightApprox. 350 g (0.77 lb.)
        • Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
        • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
        • LanguageEnglish
        • Power Supply12 VDC ?25%
        • ConsumptionMax. 4.3 W
        • IR RangeUp to 20 m
        • Approval
        • ProtectionIP67

      Data sheet PDF

      Product Description

      Platinum Professional Level 16 Channel HD-TVI 4.0 DVR

      H.265/H.265+ 16CH DVR, 4/1 RCA I/O, 5 in 1, Up to 4K/8MP HD-TVI input, Up to 2-ch 6MP IP cameras input, Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras, Up to 4k HDMI Video Output, CVBS Output, 2 SATA up to 16TB each HDD, 2 USB 2.0

      • H.265/H.265+ 16 Channel Video Recorder
      • 4/1 RCA I/O
      • 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
      • 16 channels support up to 4K/8MP HD-TVI input
      • Up to 2-ch 6MP IP cameras input
      • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
      • Up to 4k HDMI Video Output
      • CVBS Output
      • 2 SATA up to 16TB HDD
      • 2 USB 2.0


      SPECIFICATIONS

      Model

      LTD8508K-ST

      LTD8516K-ST

      Recording

      Video compression

      H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

      Encoding resolution

      When 8 MP Lite mode is not enabled:

      8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

      When 8 MP Lite mode is enabled:

      8 MP Lite/5 MP/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF

      Frame rate

      Main stream:

      When 8 MP Lite mode is not enabled:

      8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) When 8 MP Lite mode enabled:

      8 MP Lite/5 MP@12 fps/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps

      Sub-stream:

      WD1/4CIF/CIF@25fps (P)/30fps (N)

      Video bit rate

      32 Kbps to 10 Mbps

      Dual stream

      Support

      Stream type

      Video, Video & Audio

      Audio compression

      G.711u

      Audio bit rate

      64 Kbps

      Video and Audio

      IP video input

      8-ch (up to 16-ch)

      16-ch (up to 32-ch)

      Up to 8 MP resolution

      Support H.265+/H.265/H.264+/H.264 IP cameras

      Analog video input

      8-ch

      16-ch

      BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

      HDTVI input

      8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

      AHD input

      5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

      HDCVI input

      5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

      CVBS input

      PAL/NTSC

      CVBS output

      1-ch, BNC (1.0 Vp-p, 75 ?),

      resolution: PAL: 704 ? 576, NTSC: 704 ? 480

      VGA output

      1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz,

      1024 ? 768/60Hz

      HDMI output

      1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ?

      1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz

      Audio input

      4-ch, RCA (2.0 Vp-p, 1 K?)

      Audio output

      1-ch, RCA (Linear, 1 K?)

      Two-way audio

      1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

      Synchronous

      playback

      8-ch

      16-ch



      A few more things...

      Scroll to see essential features found in this product and many others across our lineup

      Why Choose Us?

      Frequently Asked Questions

      What makes your surveillance systems premium?+

      Our systems are built with advanced AI features, superior video quality, and long-term reliability—making them ideal for both residential and commercial security.

      Do you offer installation services?+

      Yes, we provide professional installation services in select locations. Contact our support team for availability and scheduling.

      Can I access the system remotely?+

      Absolutely. Our systems support remote viewing via secure mobile apps, allowing you to monitor your property from anywhere.

      What warranty do you offer?+

      All systems come with a standard 2-year warranty, with optional extended coverage for added peace of mind.

      My Recently Viewed Products

      LTS+HIKVISION 16Ch Security Cameras System Bullet 8 Megapixel H.265+ 4K/HDD IP67

      LTSLTS+HIKVISION 16Ch Security Cameras System Bullet 8 Megapixel H.265+ 4K/HDD IP67

      $731.11 $676.95

      Login

      Forgot your password?

      Don't have an account yet?
      Create account

      Network

      Remote connection

      64

      128


      Network protocol

      TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,

      ONVIF


      Network interface

      1, RJ45 10M/100M/1000M

      self-adaptive Ethernet interface

      Auxiliary interface

      SATA

      2 SATA interfaces

      Capacity

      Up to 10 TB capacity for each disk

      Serial interface

      RS-485 (half-duplex)


      USB interface

      Front panel: 1 ? USB 2.0

      Rear panel: 1 ? USB 3.0

      Alarm in/out

      8/4

      16/4

      General

      Power supply

      12 VDC, 3.33 A

      12 VDC, 5 A

      Consumption

      (without HDD)


      ? 20 W


      ? 25 W

      Working temperature

      -10 ?C to +55 ?C (+14 ?F to +131 ?F)

      Working humidity

      10% to 90%

      Dimension (W ? D ?

      H)


      380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)

      Weight (without

      HDD)


      ? 1.78 kg (3.9 lb)


      ? 2 kg (4.4 lb)

      *: Normally, only CH1/CH2 support VCA.

      If "Enhance VCA" mode is on, all channels support VCA, but Max Res only 2MP.

      Network

      Remote connection

      64

      128


      Network protocol

      TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,

      ONVIF


      Network interface

      1, RJ45 10M/100M/1000M

      self-adaptive Ethernet interface

      Auxiliary interface

      SATA

      2 SATA interfaces

      Capacity

      Up to 10 TB capacity for each disk

      Serial interface

      RS-485 (half-duplex)


      USB interface

      Front panel: 1 ? USB 2.0

      Rear panel: 1 ? USB 3.0

      Alarm in/out

      8/4

      16/4

      General

      Power supply

      12 VDC, 3.33 A

      12 VDC, 5 A

      Consumption

      (without HDD)


      ? 20 W
